50Hz 12kV ISO9001 Inflatable Cable Branch Cabinet Fully Sealed Medium Voltage Products

Sichuan Baikong Electric Technology Co., Ltd.
Contact Now

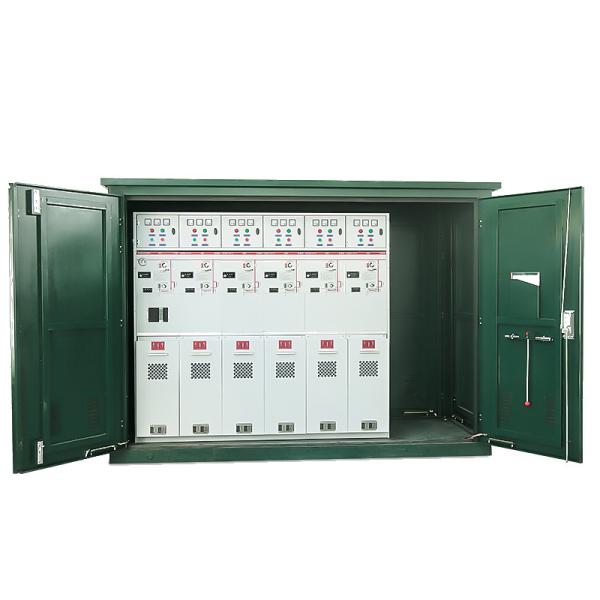

50Hz 12kV ISO9001 Inflatable Cable Branch Cabinet Fully Sealed Medium Voltage Products

  • 1
  • 2

Brand Name : Baikong

Model Number : XGW-12

Certification : ISO9001,3C

Place of Origin : Sichuan,China

MOQ : 1sets

Price : $100-$10000

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 500 Piece/Pieces per week

Delivery Time : To be negotiated

Packaging Details : Factory high quality packing carton or wooden case

product name : XGW-12 inflatable cabinet opening and closing station

Size : customized

Material : customized

Application : Power Transmission

Loop resistance : ≤100

Rated current : 50Hz

Rated voltage : 12kV

Features : Fully insulated and fully sealed

structure type : Fixed

Rated bus current : 630(A)

Contact Now

50Hz 12kV ISO9001 Inflatable Cable Branch Cabinet Fully Sealed Medium Voltage Products

The main technical parameters

Serial number project unit parameter
1 Rated voltage kV 12
2 Rated current Hz 50
3 Rated frequency A 630
4 Rated active load breaking current 630
5 Rated closed loop breaking current 630
6 Rated cable charging breaking current 10
7 Rated short-circuit making current (peak value) 50
8 Rated short-circuit withstand current duration (main circuit) s 3
9 Rated short-circuit withstand current duration (ground loop) 2
10 Rated short-time withstand current kA 20
11 Rated peak withstand current 50
12 Rated short-time power frequency withstand voltage 42
13 Rated lightning impulse withstand voltage 75
14 Loop resistance ≤100

50Hz 12kV ISO9001 Inflatable Cable Branch Cabinet Fully Sealed Medium Voltage Products

product information

◆ Product name: XGW-12 ring net box opening and closing station

◆ Category: Cable branch box

◆ Using prefabricated electrified and touchable silicon rubber cable head, fully sealed, fully insulated, maintenance-free, and reliable to ensure personal safety;

◆ Compact structure, small and beautiful appearance, stainless steel double-layer cabinet, above use;

◆ No impact Under the premise of main network operation, it can realize regional power outage maintenance and reduce the scope of power outage;

◆ It can be equipped with one or more SF6 load switches. The wiring method is flexible and diverse, and the branch outgoing line can reach 8 circuits;

◆ Lightning arrester, short-circuit fault indicator, current-limiting fuse, etc. can be selected to meet various requirements of users

XGW-12 ring net box opening and closing purpose:

It is widely used in Chengdian densely populated areas such as urban power grid transformation, residential quarters, and commercial centers.

Functional characteristics of outdoor intelligent switching station

◆ Using prefabricated live-touch silicone rubber cable head, fully sealed, fully insulated, maintenance-free, and reliable to ensure personal safety;

◆ Compact structure, small and beautiful appearance, stainless steel double-layer cabinet;

◆ On the premise of not affecting the operation of the main network, realize regional power outage maintenance and reduce the scope of power outage;

◆ It can be equipped with one or more SF6 load switches. The wiring method is flexible and diverse, and the branch outgoing line can reach 8 loops;

◆ Optional lightning arrester, short-circuit fault indicator, current-limiting fuse, etc., to meet various requirements of users.

It is made of prefabricated charged removable silicon rubber cable, fully sealed, fully insulated, maintenance-free, and can reliably ensure personal safety. The structure is small and beautiful, in stainless steel double-layer box, with service life of more than 20 years.

Without affecting the operation of the main network, it achieves regional outage repair, and reduces the scope of power outages; It can be equipped with one or more SF6 load switches. The wiring method is flexible and diverse, the branches can be up to 8 loop; Optional arrester, short circuit fault indicator, current limiting fuse, meet the various requirements of users.
